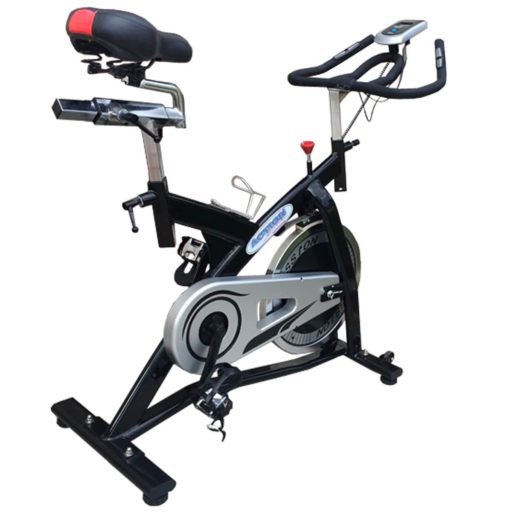

If you’re looking for an inexpensive indoor cycling bike that includes a console, the ActionLine A84016 Pro deserves your attention. As opposed to other bikes in this price and feature range, this particular fitness bike comes with two saddles. One is slimmer, being more appropriate for spinning workouts, while the other integrates more cushioning to deliver more comfort for upright, seated exercises.
It features rust and sweat-resistant, powder-coated steel frame supporting up to 275-pounds maximum user weight. It has a 40-lb perimeter-weighted flywheel and drivetrain that provides the smooth and authentic road bike feel.
The crankset is a 3-piece part, featuring heavy-duty steel crank arms which can support riders up to 275 lbs in full standing up pedaling routines. The pedals are also highly durable, made of metallic alloy. They don’t have SPD elements for spin shoes but do have toe cages for maximum foot stability. Also, the A84016 exercise bike is equipped with a racing-style dipping handlebar, featuring a multi-grip design.
The console offers a bit more than a basic model. It tracks speed, time, distance, total distance, and calories burned. In addition to monitoring the standard metrics, the console tracks your pulse as well. By holding the integrated pulse sensors, the console will give you your pulse reading. However, the console is not telemetry enabled.
Learn more in my complete review below
Product: ActionLine A84016 Pro Indoor Cycling Bike
Warranty: 1-year limited
My rating: 9.5/10
Affiliate Disclosure: I may earn commissions from purchases made through links in this post.
It’s a full-steel frame featuring a corrosion-resistant powder coating, black in color, this being the only color available for this bike, at least for now. The seat post and slider are chrome coated, though.
The bike’s frame integrates very few plastic parts such as the belt guard or the adjustment knobs. These elements do not play any role in its overall sturdiness.
The ActionLine A84016 Pro indoor cycling bike is not a bulky item of fitness equipment. With the frame fully assembled it takes only 45″L x 20″W (114 x 51 cm) of floor space. However, it’s an excellent choice for a cardio training machine, if storage and usage space are a problem.
The frame does not fold, but its front base tube has a set of transport wheels, which facilitate its relocation. Also, it is recommended to leave at least two feet of clearance all around the bike for safe operation.
Although this exercise bike isn’t cumbersome, it does weigh approximately 100 lbs, which means that its transport may require two people. But on the other hand, all this weight plays quite an essential role in its stability.
Plus, the base bars have adjustable stabilizers with rubber pads. Thus, you can be sure that the bike won’t rock or wobble even if you engage in a more demanding workout.

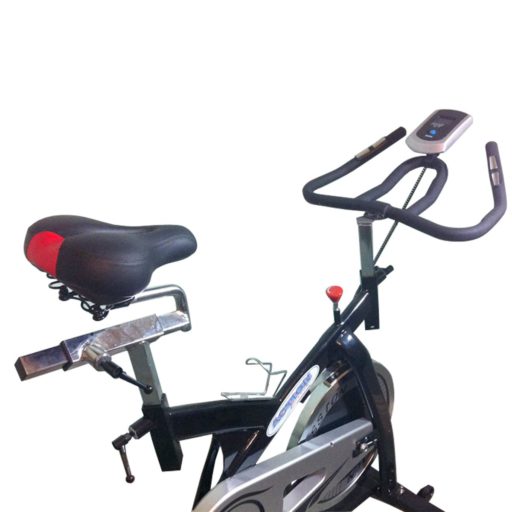

Seat and handlebars

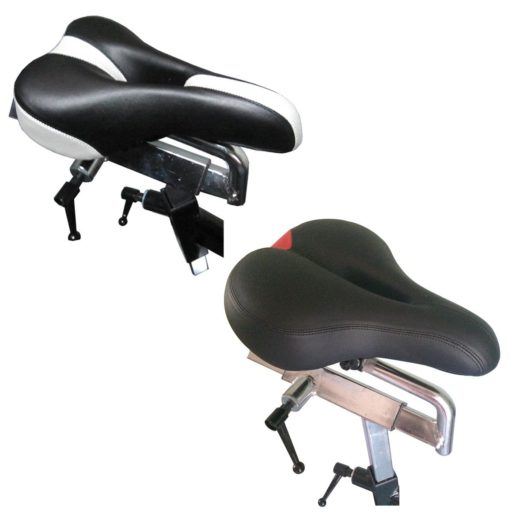

As I mentioned above, the ActionLine A84016 Pro indoor cycling bike comes with two seats. One of them is the typical slim seat similar to other spin bikes.
The other one is slightly wider and features more cushioning, made to offer more comfort when pedaling while seated. Both seats have a longitudinal groove to promote better circulation and ventilation during exercising.
The post of the seat allows both horizontal and vertical adjustment for the seat. Therefore, the bike can accommodate users between 5’0″ and 6’5″ (153 – 195 cm), with a maximum weight of 275 lbs (125 kg).
The A84016 is equipped with a racing-style dipping handlebar, featuring a multi-grip design. It’s covered by a sheet of rubber foam material, to provide optimal comfort and a secure grip. Also, the handlebar of this particular model integrates metallic pulse sensors, while the fitness meter can track your pulse.
The handlebar is adjustable only vertically, though. It cannot move back and forth. Both the seat and the handlebar have large knobs which are easy to grip and turn, promoting a rapid and effortless adjustment.
A84016 Drive and resistance
The ActionLine A84016 Pro exercise bike features a belt drive system, using a heavy-duty belt designed to function correctly, without stretching, for many years of use. This belt drive comes with two main advantages. The first one is that you won’t have to lubricate it periodically. The second one is the fact that the bike’s operation is almost silent.
Another one of the main elements of the bike’s drive system is the flywheel. This bike has a hefty, 40 lbs (18.1 kg) steel flywheel, designed to deliver a consistent momentum for a maximum burn. The wheel is balanced, promoting a steady, smooth motion. It’s also bi-directional; in other words, you can even pedal backward on this bike.
The crankset is a 3-piece part, featuring heavy-duty steel crank arms which can support riders up to 275 lbs in full standing up pedaling routines. The pedals are also highly durable, made of metallic alloy. They don’t have SPD elements for spin shoes but do have toe cages for maximum foot stability. They also have standard threads so you should be able to find replacements for them if it’s the case quickly.
Just as many other spin bikes in this price and feature range, this ActionLine bike features a friction resistance system. This resistance system consists of a felt pad connected to the resistance knob on top of the mainframe tube. When you turn the knob clockwise, the pad applies more friction to the flywheel resulting in more resistance on the pedals.
The bike doesn’t have determined resistance levels, such as magnetic bikes. Therefore, you can tighten the pad close to the point you can no longer pedal. Thus, the bike allows for high-intensity workouts, for muscle strength and stamina development.

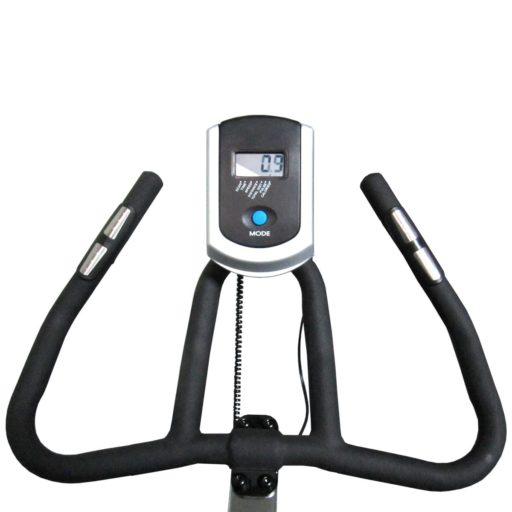

ActionLine A84016 Pro exercise bike comes with a console which offers a bit more than a basic model. That’s because it can also track your pulse if you hold on to the sensors built-in the handlebars. Along with the pulse, it can also track speed, time, distance, total distance, and calories burned.
The unit is straightforward to operate. It has only one button which allows you to toggle its SCAN function on and off. When SCAN is on, the unit will rotate all the values showing each one for several seconds.
By pressing the button, you can select one of the metrics to remain on screen at all time. Also, the button has a reset function. By pressing and holding it for several seconds, you can clear all the values to zero.
The console comes on when you press the button or when it detects flywheel movement. It has a sleep mode to which will enter after several seconds of inactivity on the bike to save battery.
A84016 Assembly and Maintenance
This indoor cycling trainer is straightforward to assemble. The mainframe, the flywheel, drive belt, crank, and resistance parts are pre-assembled. So, for the assembly, you only have to attach the base bars, the seat post, the handlebar post, one of the seats, the handlebars, the pedals, and the console. This shouldn’t take more than an hour. All the tools needed comes with the manual that offers pretty clear step-by-step instructions.
For maintenance, the resistance pad may require lubrication. It’s recommended to use a silicone-based lubricant. Also, in case the pad wears out, it needs replacement. However, the brake pad should last for at least a couple of years, even if you use the bike frequently. Other than this, you should periodically check for loose bolts and parts.
Details and Specifications
- Assembled dimensions: 45L x 20W x 44H inches (114L x 51W x 112H cm)
- Shipping weight: 111 lbs (50.3 kg)
- Flywheel weight: 40 lbs (18.1 kg)
- Weight capacity: 275 lbs (125 kg)
- Handlebars: 2-way adjustable
- Seat: 4-way adjustable
- Pedals: With toe cages
- Drive Type: Belt
- Resistance: Friction, adjustable
- Console: Time, speed, distance, total distance, calories, pulse, SCAN
- Durable frame, sturdy construction for a home use bike;
- Small footprint;
- Adjustable stabilizers;
- Transport wheels;
- Two seats included, one for seated workouts, one for spin workouts;
- The seat can be adjusted both vertically and horizontally;
- 2-way adjustable handlebar;
- Multi-grip handlebar;
- Pulse sensors built-in the handlebar;
- Smooth, almost silent belt drive;
- Bi-directional, heavy flywheel for a consistent momentum;
- Friction resistance, which offers tension up to the point you can barely pedal;
- Bottle holder included;
- The console is (included), which tracks speed, time, distance, total distance, calories, and pulse;
- Easy to assemble;
- Little maintenance required.
- Pedals don’t have SPD clips for spin shoes;
- The calories reading on the console may not be too accurate;
- Fitness console isn’t backlit.
ActionLine A84016 Pro Summary
The ActionLine A84016 Pro is an indoor cycling trainer designed for spin workouts. It features a sturdy frame, a heavy flywheel, friction resistance, and a 4-way adjustable seat.
Furthermore, it comes with two seats, one for spin workouts and one for seated exercises. It also has a console which can track speed, distance, total distance, time, calories, and pulse.
It’s an exercise bike perfect for interval training, light to intense cardio, muscle toning, building stamina, and leg muscle strength, and of course, for losing weight. In all, this exercise bike offers excellent value for the price.
