The Fitness Reality X-Class 2868 Olympic Power Cage can handle up to 1500 lbs of serious weight capacity. The entire 2″ x 3″ frame is heavy-duty tubular steel that provides maximum durability for all kinds of heavy workouts. It’s a light-commercial power cage that integrates a lat machine, dip handles, and several other accessories and workout stations.
This rack comes with adjustable J-hooks for safely racking and unracking any standard Olympic size bar. Additionally, it has two different styles of safeties, each of which is rated to support the full 1500 lb capacity of the rack itself.
Over 24 exercises are possible and the heavy-duty tubular steel frame construction will provide strength and durability-though many workouts. There is plenty of space inside the cage for full stance squats and an additional spotter for safety. The multi-grip pull up bars offer multiple hand positions to enhance back, shoulder, and arm muscles.
Also, the Fitness Reality X-Class Lat Pull Down and Low Row Cable attachment is an excellent add-on for building your upper back, shoulders, and arms muscles. Thus, you’ll get the strength workout you want with the Fitness Reality X-Class 2868 Olympic Power Cage with Lat Pull Down and Low Row Cable Attachment.
Learn more in my complete review below
Product: Fitness Reality X-Class 2868 Olympic Power Cage
Warranty: Frame 10 years / Parts 3 Years / Wearable parts two years
My rating: 9.25/10
Amazon Affiliate Disclosure: I may earn commissions on purchases made through links in this post.
2868 Frame construction
The Fitness Reality X-Class 2868 is a light-commercial power cage, and therefore, it delivers excellent sturdiness and stability. It’s 2″ x 3″ tubular steel, coated with a rust-resistant and chip-resistant paint finish.
The fully assembled unit is relatively large. It’s approx — 86.5″ (220 cm) long, and 52″ (132 cm) wide. However, the outer distance between the safety or catch bars is approx. 49″ (~124 cm). Therefore, if using an Olympic bar, you will have at least one inch of clearance on each side, between the bar’s collar and the safety bar.
The unit’s height is 86″ (218 cm). It won’t fit in a room with a 7′ (214 cm) ceiling. It’s also advisable to assemble it and in a room with a ceiling that allows at least 12″ (30.5 cm) of clearance so that you can execute all the pull-ups and chin-ups correctly.
The upright bars of the cage feature 25 adjustment positions for the safety bars, and the distance between the adjustment holes are approx — 2″ (5 cm).
The unit’s base bars feature pre-drilled holes for anchoring the unit to the floor. However, considering that the whole cage without any weight plates loaded on it, weighs 301 lbs (136.5 kg), bolting it to the floor may not be necessary.
The rear bottom section of the cage features a U-shaped stability bar with two-foot supports for low rows or other exercises. This U-bar not only provides lower support and anchoring points for the lat machine, but it also improves the overall sturdiness of the cage frame.
Other parts and accessories
The Fitness Reality X-Class 2868 power cage includes two short 11.5″ (~29 cm) safety bars, and two long 35.5″ (~90 cm) safety bars. Each set offers a combined weight capacity of 1,500 lbs (680 kg). Each safety bar features a layer of rubber material on top to prevent dents, scratches, or loud re-racking noises of the weight bar.
The extended safety bars feature 13 adjustment positions for the included dip handles. This results in superior adjustability for the dip station so that the unit can accommodate users of all sizes.
The included dip handles are 20″ (51 cm) long. They have rubberized 2″ (5 cm) grips for optimal comfort, and a weight capacity of 600 lbs (272 kg). Therefore, you can perform weighted dips with no problem.
The top frame bar of this Fitness Reality X-Class power cage comes with a long, curved pull-up bar, and two pull-up handles on the opposite side for parallel pull-ups. The bar is 44″ (~112 cm) long and has curved lateral grips. Both the pull-up bar and the opposing pull-up handles have rubberized grips to prevent hand slippage.
The lat machine integrated into this power cage has several nylon pulleys with ball bearings and nylon-coated steel cables. It offers a high pulley workout station and a low pulley workout station. Additionally, it has a weight capacity of 360 lbs (163 kg) and features 7″ (~17 cm) weight loading pegs.
It can be loaded either with 1″ Standard plates or 2″ Olympic plates as a set of Olympic peg adapters is included.
In terms of other accessories, this power cage includes a set of J-hooks, a lat bar, and a short row bar. A set of 1″ spring collars is also (included). However, 2″ collars or clips for the Olympic peg adapters are not (included).
2868 Workout stations
The Fitness Reality X-Class 2868 power cage offers five distinct workout stations. These are:
The power cage itself. Due to the 25 attachment positions for the safety bars, this unit provides the possibility to safely execute a variety of heavy lifting exercises, such as squats, bent-over rows, shrugs, or deadlifts.
Pull-up/Chin-up station. As we’ve mentioned above, the top frame bar of the power cage features a long pull-up bar with curved grips, and a set of pull-up handles for parallel grip pull-ups. Both the handles and the pull-up bar have a weight capacity of 600 lbs (272 kg), which means you can perform weighted exercises with no problem.
Dip station. This strength training system includes a set of dip handles that can be attached to each one of the extended safety bars. Each safety bar provides 13 attachment positions for the dip handles, which enables the dip station to accommodate a wide range of users. Plus, since the dip handles attach to a safety bar, you can also select the most suitable height for them.

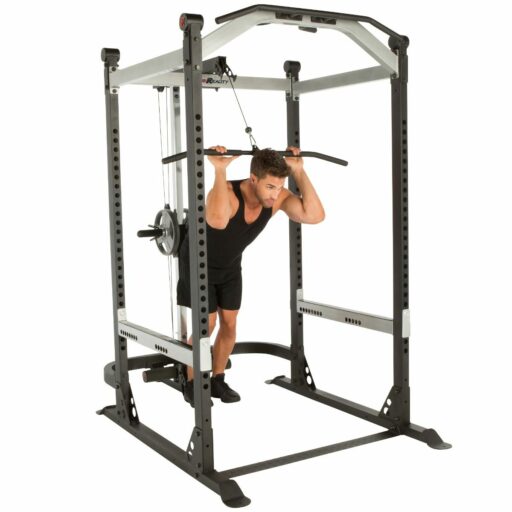

High pulley station. This workout station offers the possibility to execute a wide array of lat pull-down exercises. A 44″ (~112 cm) lat bar with curved grips and a rubberized surface is (included) with the unit.
Low pulley station. The lat machine comes with a low pulley for the execution of seated rows, stand-up curls, or other exercises. A short bar with thick foam handles is (included) for this workout station.
Weight Resistance System
The lat machine integrated into this strength training system does not have its weight stack like the Body-Solid GLA378 lat attachment included with the GPR378 power cage. Its slider features two 1″ pegs, each one being 7″ (~17 cm) long.
As I’ve mentioned above, Olympic plate adapters are also (included) with the lat machine. Each weight loading peg can fit at least three 45 lbs (20.4 kg) weight plates, while the total weight capacity of the unit is 360 lbs (163 kg).
The weight ratio of the lat machine is not specified. But according to several reports from users, it’s between 2:1 and 1:1. It delivers plenty of weight resistance for a consistent workout.
2868 Possible Exercises
Standing and seated military shoulder presses
Wide and narrow chin-ups
Flat bench press
and many others
2868 Assembly and Maintenance
Like most home gyms, the Fitness Reality X-Class 2868 power rack with its lat pull-down machine comes in several boxes. It requires full assembly, which may take at least a few hours. However, the construction is not as complicated as for a gym system like the Body-Solid Fusion 500, for example. Plus, the manual provides precise assembly instructions.
The tools required for the assembly are not (included). You will need two adjustable wrenches, a set of Allen wrenches, a Phillips screwdriver, and a rubber mallet.
For maintenance, it is recommended to periodically lubricate the upright guide bar of the lat machine, for a smoother journey of the gliding element. It’s also recommended to regularly inspect the machine, check for loose bolts, broken parts, etc., to remedy any problem that can lead to an accident.
Details and Specifications
- Assembled dimensions: 86.5L x 52W x 86H inches (220L x 132W x 218H cm)
- Assembled weight: 301 lbs (136.5 kg)
- Maximum weight capacity:
Safety bars: 1,500 lbs (680 kg);
Catch bars: 1,500 lbs (680 kg);
Dip handles: 600 lbs (272 kg);
Chin-up bars: 600 lbs (272 kg);
Pull-up bar: 600 lbs (272 kg);
Lat pulldown attachment: 360 lbs (163 kg);
- Possible exercises: 24+
- Warranty: Frame 10 years / Parts 3 Years / Wearable parts two years
- Extremely sturdy, light-commercial grade, all-steel frame;
- Pre-drilled holes in its bases so you can anchor it to the floor if you want;
- Five workout stations, including lat pulldown station, pull-up/chin-up station, low pulley station, dip station, and sit-up station;
- Smooth pulley and cable movement;
- Catch bars, safety bars, and J-hooks rated for heavy loads, up to 1,500 lbs;
- The catch bars and safety bars are rubberized to prevent paint chipping and loud bar dropping noises;
- 25 attachment positions for the catch bars and safety bars;
- 13 attachment positions for the dip handles;
- Easily adjustable dip handles included;
- Since the dip handles attach to the long safety bars, you can select your desired height for the dip station;
- The pull-up station offers a long bar and two short handles for parallel grip pull-ups;
- Superior weight capacity (600 lbs) for both dip and pull-up stations – this offers the possibility to perform weighted exercises;
- Olympic plate adapters for the lat attachment included;
- 360 lbs weight capacity for the lat station;
- Lat pulldown bar included;
- The short bar for low pulley exercises included;
- Over 24+ possible exercises;
- Quiet operation;
- Little maintenance required;
- Fairly easy to assemble for a home gym.
- Excellent warranty.
- No ankle strap for low pulley leg exercises;
- No collars or clips for the 2″ peg adapters;
- The tools for assembly are not (included).
Fitness Reality X-Class 2868 Summary
The Fitness Reality X-Class 2868 Olympic Power Cage is a light commercial power cage that includes a lat machine with high and low pulleys. It’s a strength-training system for users of all levels offering a high load capacity for all its workout stations and safety bars.
In particular, it’s a versatile strength cage that allows the execution of over 24+ gym-quality exercises, involving most muscle groups. And finally, it’s a piece of excellent powerlifting equipment, offering outstanding value for the price.
I hope you found this article helpful and informative. If you have anything that you’d like to share or any opinions about my website, please do speak up. I look forward to your comments, questions, and the sharing of ideas.
