Marcy SM-4033 Smith Machine | All-in-One Strength Training

One of the best gyms for home use is the Marcy SM-4033 Smith Machine, an all-in-one strength training machine. It offers everything you need to build muscle, get strong, and burn fat. In addition, it can train all major muscle groups and give various exercises for other smaller muscle groups.

The smith machine bar allows you to perform squats, deadlifts, presses, and rows in assisted and safe environments. This feature is excellent for the very weak or if you’re looking to train heavily while alone; it has safety stops that allow you to escape safely from the bar whenever needed.

The cables are steel aircraft cables, allowing you to perform exercises such as cable crossovers, cable lat pulldowns, triceps extensions, single-arm rows, Russian twists, and cable crunches. It is an independent motion upper body system that is strong and smooth.

To add to the convenience, the Marcy SM-4033 Smith Machine comes with several attachments – Short Bar, Triceps Rope, Cable Handle (2), and a Land Mine attachment. When not in use, easily store your bar and weights using the included bar holder and weight posts. So throw your gym membership away and get the all-in-one Marcy SM-4033 Smith Machine.

Learn more in my complete review below!

Product: Marcy SM-4033 Smith Machine

Price: For a great deal on this gym, merely go here on Amazon.com

Warranty: 2 years limited

My rating: 8.75/10

Affiliate Disclosure: As an Amazon Affiliate Program participant, I earn commissions on purchases made through links in this post. Full disclosure

Please note that the Olympic bar and weight plates included in the images sell separately.

Details and Specifications

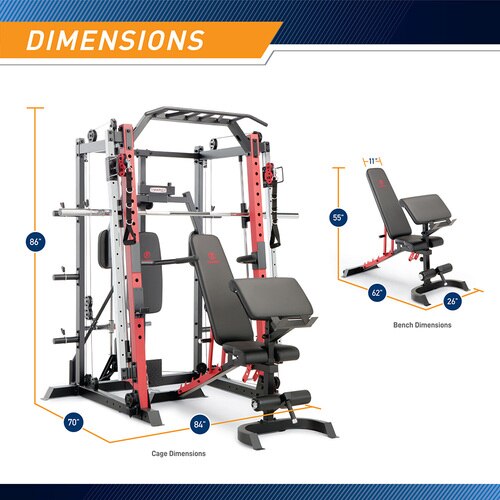

• Cage dimensions: 70L x 84W x 86H inches (178L x 213W x 219H cm)
• Bench dimensions: 62L x 26W x 55H inches (158L x 66W x 140H cm)
• Assembled weight: ~600 lbs (272 kg)
• Weight capacity:
  Bench: 600 lbs (272 kg) (including user’s weight)
  Press bar: 300 lbs (136 kg)
  Sliding weight trolley: 300 lbs (136 kg)
  Pull-up bar and dip station: 300 lbs (136 kg)
  Bar catches: 300 lbs (136 kg)
  Storage post: 100 lbs (45.3 kg)
• Compatible weight plates: Olympic
• Possible exercises: 50+
• Warranty: 2 years limited



SM-4033 Cage construction

The Marcy SM-4033 Smith Machine features heavy-duty 14-gauge steel tubing construction. Most frames come with a durable, corrosion-resistant, and chip-resistant paint finish. However, the guide rods of the Smith element and the lat machine come chrome-plated. It also stands for the adjustable posts of the crossover adjustable pulleys.

The fully assembled cage is reasonably large. It is approx—70″ (178 cm) deep and 67.8″ (172 cm) wide at the base. However, considering the barbell, the total width of the unit is 84″ (213 cm). The highest point of the cage is the top of the pull-up bar assembly, which reaches approx—86″ (219 cm) above floor level.

Thus, the smith machine won’t fit in a room with a 7-foot ceiling. Plus, you must allow at least one foot of clearance above for the correct execution of all pull-up exercises. Marcy advises leaving two feet of room on each side and the rear and at least three feet – 4 feet in the front.

The whole Marcy SM-4033 smith machine is pretty heavy. Its total weight is close to 600 lbs (272 kg). However, all this weight, plus the extra weight the loaded plates provide, delivers superior stability. The unit shouldn’t budge even if you use weight loads close to the maximum limit. In addition, the base bars have anchor points, so you can secure them to the floor if needed.

The front upright bars of the cage feature 17 adjustment holes for the j-hooks and dip bars. They are 1 inch in diameter, so other standard attachments should be compatible with this Marcy home gym.

Workout stations

The Marcy SM-4033 Smith Machine makes available five main workout stations. These are:

Smith cage. The smith cage is the primary workout element of the Marcy SM-4033. A 7-foot Olympic bar comes included with it. It offers the possibility of performing secured squats or deadlifts with extra control instead of free barbell exercises. The front pillars of the cage also have attachment holes for j-hooks if you want to perform free squats. However, safety bars do not come included. Only the Smith element has safety hooks.

Pull-up station. This attachment consists of a multi-grip bar. It offers the possibility to perform all kinds of pull-ups or chin-ups and is durable enough to support weighted exercises. Its grips do not have foam sleeves. However, they come knurled for improved contact.

Crossover station. This workout station consists of two mobile pulley attachments. Their upright posts feature 15 adjustment positions. They offer an inner swivel of 90°, and their carriages have handles for easy adjustment. They offer the possibility to execute cable crossover exercises, lat pulldowns, standing rows, shoulder presses, and more.

Butterfly press. This attachment is quite a plus. It consists of two arms with large pads and a backbone with an extra backrest pad. It attaches to the lat machine and offers the possibility to perform butterfly exercises. However, it does not work as a front press, as is the case for the butterfly elements of other home gyms.

Low pulley station. The unit’s low pulley attaches at the base of the lat attachment. It offers the possibility of performing seated, standing, and other low pulley exercises. The machine also includes a footrest plate for extra support during seated rows.

It is important to note that the low pulley cannot attach to the included bench to perform leg extensions or curls. However, with the provided ankle cuff, you can perform standing (one leg) curls via the crossover station.

SM-4033 Other parts and accessories

The Marcy SM-4033 Smith Machine comes equipped with 31 pulleys. These are heavy-duty nylon materials, highly resistant to abrasion, and sealed bearings for smooth motion.

The included cables are steel ropes with PVC sleeves on them to prevent the scratching of the pulleys. Although most of the machine’s stations have a maximum of 300 lbs (136 kg) of weight loads, the cables have a  2,000 lbs (907 kg) weight load.

This Marcy SM-4033 home gym doesn’t have safety bars for free squats. However, a set of j-hooks come included with it. They are rubberized to prevent noise and paint damage. And have a maximum of 300 lbs (136 kg) weight load.

A set of two dip arms also come included with the Marcy SM-4033. These attach to the front upright pillars of the cage. They have extended grips with rubber sleeves at the front for improved contact.

Six weight storage posts come included with this Marcy strength cage. They attach to the rear upright post of the unit. They’re for storing 2″ Olympic plates; they do not have removable sleeves and cannot accommodate 1″ standard plates. Collar springs for securing the plates come included for all storage posts.

Last but not least, the Marcy SM-4033 includes a landmine attachment, a lat bar, a tricep rope, 2 D-handles with multiple attachment rings, a short bar, and an ankle strap.

Bench

The Marcy SM-4033 home gym system includes a multi-position adjustable bench with a preacher pad attachment. The bench has a steel frame coated with a corrosion-resistant paint finish. It is approx. 62″ (158 cm) long and 26″ (66 cm) wide, while its highest point reaches 55″ (140 cm) when the backrest is at the top position.

The bench offers six adjustment positions for the backrest. The approximate angles are -27°, 0°, 12°, 27°, 42°, 59°, and 76°. The seat pad is also angle-adjustable. It offers three positions 0°, 8°, and 16°.

The bench’s adjustability doesn’t end here. Its preacher pad attachment and the height of the ankle stopper are also adjustable. Each one has three height adjustment positions.

The backrest, the seat pad, and the preacher pad integrate 2.5″ foam cushioning. Their covers are made of a durable vinyl material that is sweatproof and easy to maintain. In addition, the preacher pad features support for your curl bar. Its exact weight limit is not specified, but it should hold at least 100 lbs (45 kg). The ankle stoppers also have foam rollers to provide comfort during sit-ups.

The exact weight of the bench is not specified, but it is pretty heavy. However, its rear base has a set of small wheels, while the foot stopper attachment has a handle so you can easily lift the bench from its front end and roll it away if the cage is empty.

SM-4033 Weight Capacity and Resistance

Most training stations with the Marcy Smith Machine SM-4033 have a maximum weight limit of 300 lbs (136 kg). Thus, it includes the Smith element, the weight carriage of the lat attachment, bar catches, dip bars, and pull-up bar attachment.

The bench has a maximum weight limit of 600 lbs (272 kg), including the user’s weight plus the barbell. The weight plate storage posts have a limit of 100 lbs (45 kg) each.

The machine’s butterfly press and the low pulley provide a 1:1 weight ratio in weight resistance. Therefore, if you load the lat carriage with 100 lbs (45 kg), you will benefit from a weight resistance of 100 lbs (45 kg) when using the low pulley or the butterfly station.

Conversely, the crossover pulleys have a weight resistance ratio of 2:1. Therefore, if the carriage has 100 lbs (45 kg), each crossover pulley will provide a weight resistance of 50 lbs (22. 6 kg).

Possible Exercises

This Marcy home gym system offers the possibility to perform more than 50+ exercises. The list includes:

• Pull-ups
• Wide grip pull-ups
• Muscle pull-ups
• Behind head pull-ups
• Cliffhangers
• Chin-ups
• Close grip chin-ups
• Wide grip chin-ups
• Hanging knee raises
• Hanging leg raises
• Lat pulldowns
• Close-grip pulldowns
• Behind head pulldowns
• Dips
• All kinds of cable cross-overs
• Aerobic rowing
• Kneeling rowing
• Biceps curls



• Preacher curls
• Triceps press downs
• Incline presses
• Horizontal presses
• Single-arm chest presses
• Wide grip chest presses
• Close grip chest presses
• Butterfly presses
• Cable crunches
• Cable twist crunches
• Seated trunk rotations
• Standing trunk rotations
• Calf raises
• Squats
• Single-leg squats
• Kneeling single-leg squats
• Wide squats
• Twisting squats
• Jumping squats
• Hip extensions
• Hip adductions
• Landmine exercises
• Standing one-leg curls
• and more

SM-4033 Assembly and Maintenance

The Marcy SM-4033 Smith Machine requires complete user assembly. It comes in 5 heavy boxes and requires at least two people for transport and assembly. The assembly task is difficult due to the number of parts and will take at least 5-6 hours.

On the other hand, the manual provides clear, step-by-step assembly instructions and schematics. The tools for the assembly do not come included with the machine. You will need two adjustable wrenches and a set of Allen wrenches.

Once completely assembled, maintenance does not require much. However, the guide rods of the Smith element and the lat carriage may require some greasing from time to time to provide a smooth trip for the moving parts. Inspecting the machine for loose parts and retightening as needed is also advisable.

Please note that the Olympic bar and weight plates contained in the images sell separately.

Pros

• Heavy-duty 14-gauge steel frame construction;
• Multiple workout stations available, including pull-up bar, butterfly press, low pulley, cable crossover, and Smith cage;
• 17 adjustment positions for the bar catches and dip bars;
• Heavy-duty nylon pulleys with steel ball bearings;
• 2,000 lbs tensile strength steel cables with PVC sleeves;
• 15 adjustment positions for the crossover pulleys;
• Multi-position adjustable bench included;
• 600 lbs capacity for the bench;
• Height-adjustable preacher pad for the bench included;
• Thick foam padding on the bench and fly press backrest;
• Transport wheels on the bench rear base bar;
• Multiple attachments and accessories – landmine swivel, tricep rope, D-handles, dip handles, j-hooks, ankle cuff, long bar, short bar;



• Six weight storage posts included;
• Over 50+ exercises available;
• Little maintenance is required.

Cons

• No safety bars for free squats;
• Not compatible with Standard 1″ weight plates.

Marcy SM-4033 Smith Machine Summary

The Marcy SM-4033 Smith Machine is a complete, heavy-duty strength training system. It offers five main workout stations, including the Smith cage element, adjustable crossover pulleys, multi-grip pull-up bar, butterfly press, and low pulley. It also includes a multi-position adjustable bench.

Moreover, it’s a home gym for users of all levels, offering more than 50+ exercises. And finally, even though it’s not for commercial use, it’s close to the quality of a commercial strength training system.

I hope you found this article helpful and informative. Would you please speak up if you have anything you’d like to share on the topic or any opinions about my website? I look forward to your comments, questions, and the sharing of ideas.

Please remember to consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. In addition, your physician’s advice is essential if you are taking medication that affects your heart rate, blood pressure, or cholesterol level.
